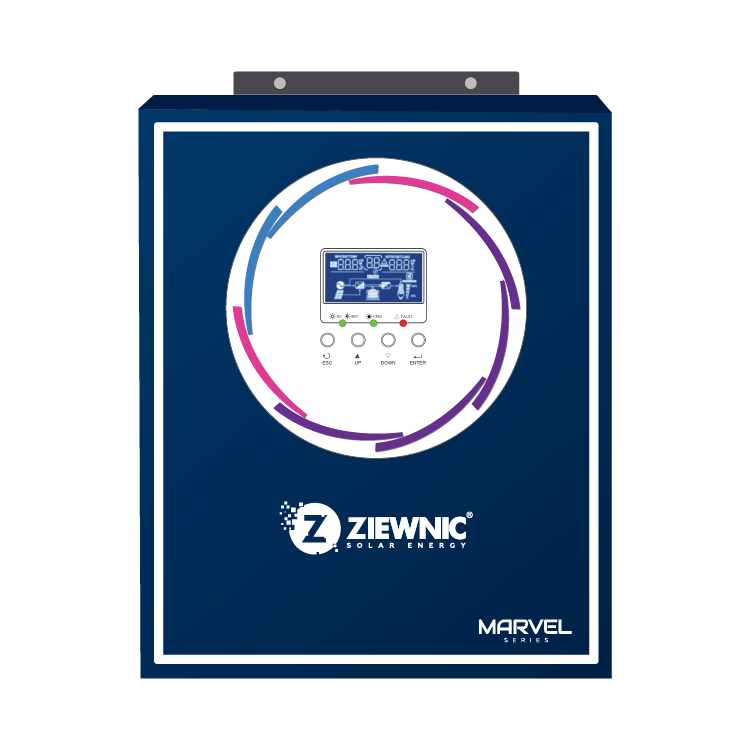

| Specifications - Marvel Hybrid 2.8 KVA 2.8 KVA | |||
| Rated Power | 2800VA / 1820W | ||
| INPUT | |||
| Voltage | 230 VAC | ||
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) : 90-280 VAC (For Home Appliances) | ||
| Frequency Range | 50 Hz/60 Hz (Auto Sensing) | ||
| OUTPUT | |||
| AC Voltage Regulation (Batt.Mode) | 230VAC+/-5% | ||
| Overload (Line mode) | Load > 110% +/- 15% Alarm 5 mins then fault if user decrease the load <100% rating, the overload alarm can release. Load >130% +/- 15% fault immediate | ||
| Surge Power | |||
| Efficiency (Peak) | 90% ~ 93% | ||
| Transfer Time | 10 ms (for Personal Computers) : 20 ms (for Home Appliances) | ||
| Wave Form | Simulated Sine Wave | ||
| BATTERY | |||
| Battery Voltage | 13.5 VDC | ||
| Floating Charge Voltage | 24 VDC | ||
| Overcharge Protection | 31 VDC | ||
| SOLAR CHARGER & AC CHARGER | |||
| Solar Charger Type | Semi MPPT | ||
| Maximum PV Array Open Circuit Voltage | 55 VDC | ||
| Maximum PV Array Power | 1500W | ||
| MPPT Range @ Operating Voltage | 30-55 VDC | ||
| Maximum Solar Charge Current | 60A | ||
| Maximum AC Charge Current | 20A | ||
| Maximum Charge Current | 80A | ||
| OPERATING ENVIRONMENT | |||
| Humidity | 5% to 95% Relative Humidity (Non~Condensing) | ||
| Operating Temperature | -10°C ~ 50°C | ||
| Storage Temperature | -15°C ~ 50°C | ||
