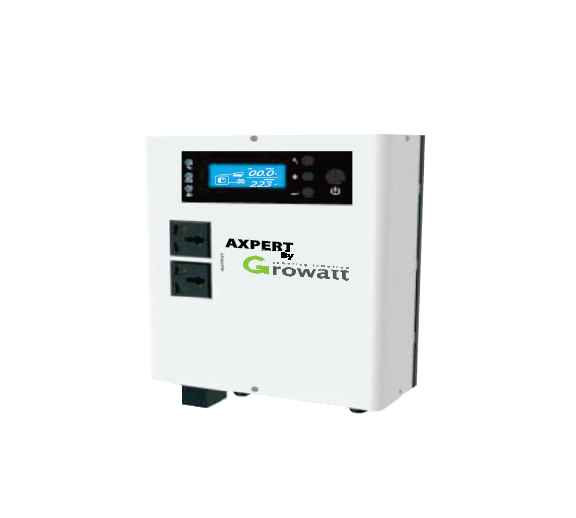

| Specifications - Axpert VP (1200-12) | |||
| Rated Power | 1200VA / 1000W | ||
| INPUT | |||
| Voltage | 230 VAC | ||
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) : 90-280 VAC (For Home Appliances) | ||
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | ||
| OUTPUT | |||
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | ||
| Surge Power | 2400VA | ||
| Efficiency (Peak) | 90% ~ 93% | ||
| Transfer Time | 1O ms (For Personal Computers) : 20 ms (For Home Appliances) | ||
| Waveform | Simulated sine wave inverter | ||
| BATTERY | |||
| Battery Voltage | 12 VDC | ||
| Floating Charge Voltage | 13.5 VDC | ||
| Overcharge Protection | 16 VDC | ||
| SOLAR CHARGER & AC CHARGER | |||
| Solar Charger type | PWM | ||
| Maximum PV Array open circuit voltage | 55 VDC | ||
| Maximum PV Array Power | 1000 W | ||
| MPP Range @ Operating Voltage | N/A | ||
| Maximum Solar Charge Current | 60 A | ||
| Maximum AC Charge current | 20 A | ||
| Maximum Charge Current | 80 A | ||
| ENVIRONMENT | |||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | ||
| Operating Temperature | -10 °C to 50 °C | ||
| Storage Temperature | -15 °C to 60 °C | ||
| Design & Engineering in Taiwan | |||
