Aim Vm-Plus (2800-24) 2.8 KVA - GrowattPK

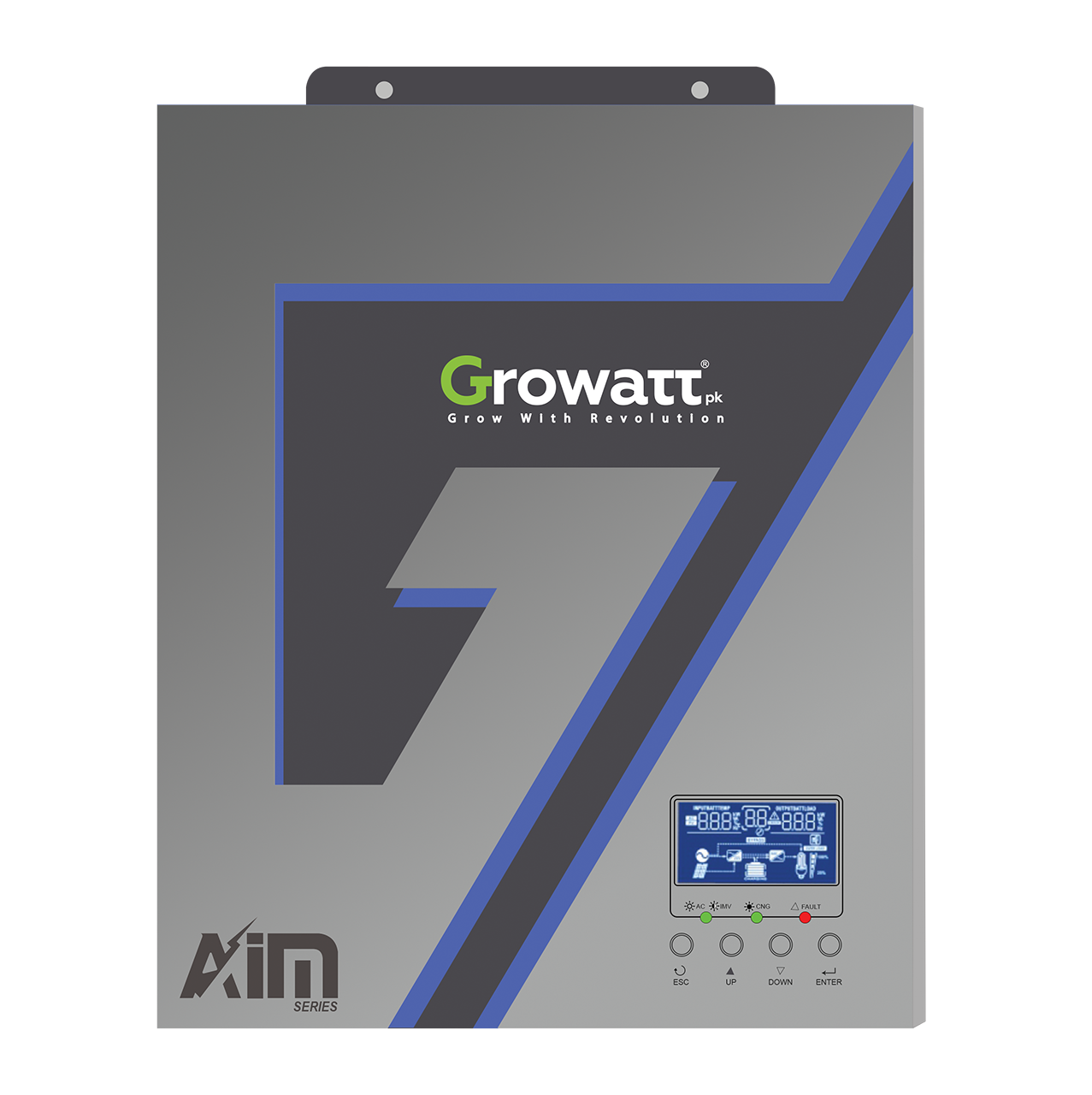

Aim Vm-Plus (2800-24) 2.8 KVA GrowattPK inverter

Aim Vm-Plus (2800-24) 2.8 KVA

  • First thermal protected pure sine wave inverter 90%.
  • Built in (MPPT) Solar charge controller 60A
  • Battery equlizations
  • Hybrid settings funtional with 4 buttons
  • Boosted buck charging with AVR
  • Voltage operate 95 volts 285 volts
  • Reverse polarity protection
  • Automatic Line-to-battery switch over
  • Rack design and wall-Mounted design for flexable installation
  • Provides overload protection
  • Auto restart while AC recoevry
  • Multi-function LED/LCD display for comprehensive information and buzzer alarms
  • Thermal protection sensor
  • High efficient DC-to-AC conversion minimizing energy loss
  • Intelligent 4 stage charge controller for efficient charging and preventing overcharge
  • Cost effective as compared to generator, multiple protection: Low battery alarm, low battery shutdown, overcharge voltage shutdown, overload alarm & shutdown, over temperature shutdown and short circuit shutdown
  • Conformal coating to prevent from dust and humidity
Specifications - Aim Vm-Plus (2800-24) 2.8 KVA
Rated Power 2800VA | 1820W
INPUT
Voltage 230 VAC
Selectable Voltage Range 90-280 VAC
Frequency Range 50Hz / 60Hz (Auto Sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 10%
Overload (Line Mode) Load > 110% ± 15%,alarm 5 mines then fault if user decrease the load <100% rating,the overload alarm can release.Load >130% ± 15%, fault immediately
Surge Power 4000 VA
Efficiency (Peak) 85%
Transfer Time 2O ms
Waveform Pure Sine Wave 90%
BATTERY
Battery Voltage 24VDC
Floating Charge Voltage 27.4VDC ± 1VDC
Overcharge Protection 30.0VDC ± 1VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type TRUE (MPPT)
Maximum PV Array Open Circuit Voltage 100 VDC
Maximum PV Array Power 1500 W
MPPT Range @ Operating Voltage 15 ~ 80VDC
Maximum Solar Charge Current 60A
Maximum Charge Current 10A / 15A
Indicators AC Mode,Battery mode,Fault
Alarm Low Battery, Overload, Fault
PHYSICAL
Dimension D * W * H (MM) 290 * 232 * 93 mm
Net Weight (kgs) 4.5 kg
ENVIRONMENT
Humidity 0 to 90% Relative Humidity (Non-condensing)
Operating Temperature 0°C to 40°C
Storage Temperature -15°C to 50°C
