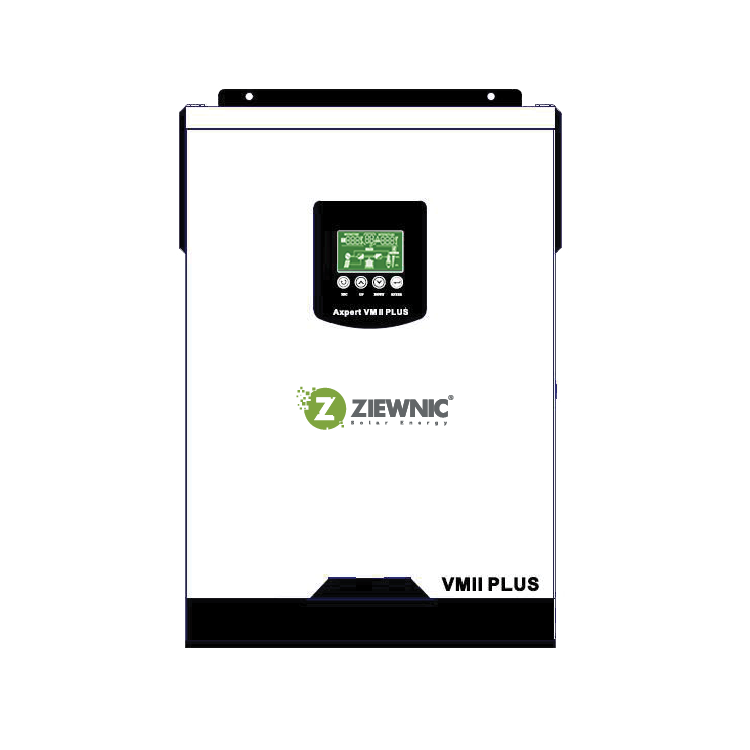

| Specifications - Aim VM II PLUS 3200 (3.2 KVA) Hybrid Inverter | |||
| Rated Power | 3200VA | ||
| AC INPUT | |||
| Voltage | 170~280 VAC (For Personal Computer) | ||
| Selectable Voltage Range | 90~280VAC (For Home Appliances) | ||
| Frequency Range | 50 HZ / 60 HZ (Auto Sensing) | ||
| AC OUTPUT | |||
| AC Voltage Regulation | 230VAC ± 5% | ||
| Surge Power | 6000VA | ||
| Efficiency (Peak) PV to INV | 97% | ||
| Efficiency (Peak) Battery to Inv | 94% | ||
| Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) | ||
| BATTERY & AC CHARGER | |||
| Battery Voltage | 24 VDC | ||
| Floating Charge Voltage | 27 VDC | ||
| Overcharge Protection | 33 VDC | ||
| Maximum AC Charge Current | 60A | ||
| SOLAR CHARGER | |||
| Maximum PV Array Power | 4000W | ||
| MPP Range @ Operating Voltage | 130 ~ 430 VDC | ||
| Maximum PV Array open circuit voltage | 500 VDC | ||
| Maximum Charge current | TRUE (MPPT) 80A | ||
| Maximum PV Input Current | 18A | ||
| Maximum Efficiency | 98% | ||
| PHYSICAL | |||
| Communication Interface | RS323/GPRS/Wi-Fi | ||
| OPERATING ENVIRONMENT | |||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | ||
| Operating Temperature | 0 °C to 55 °C | ||
| Storage Temperature | -15 °C to 60 °C | ||
