Cheetah (JSGFP-144-405) - GrowattPK

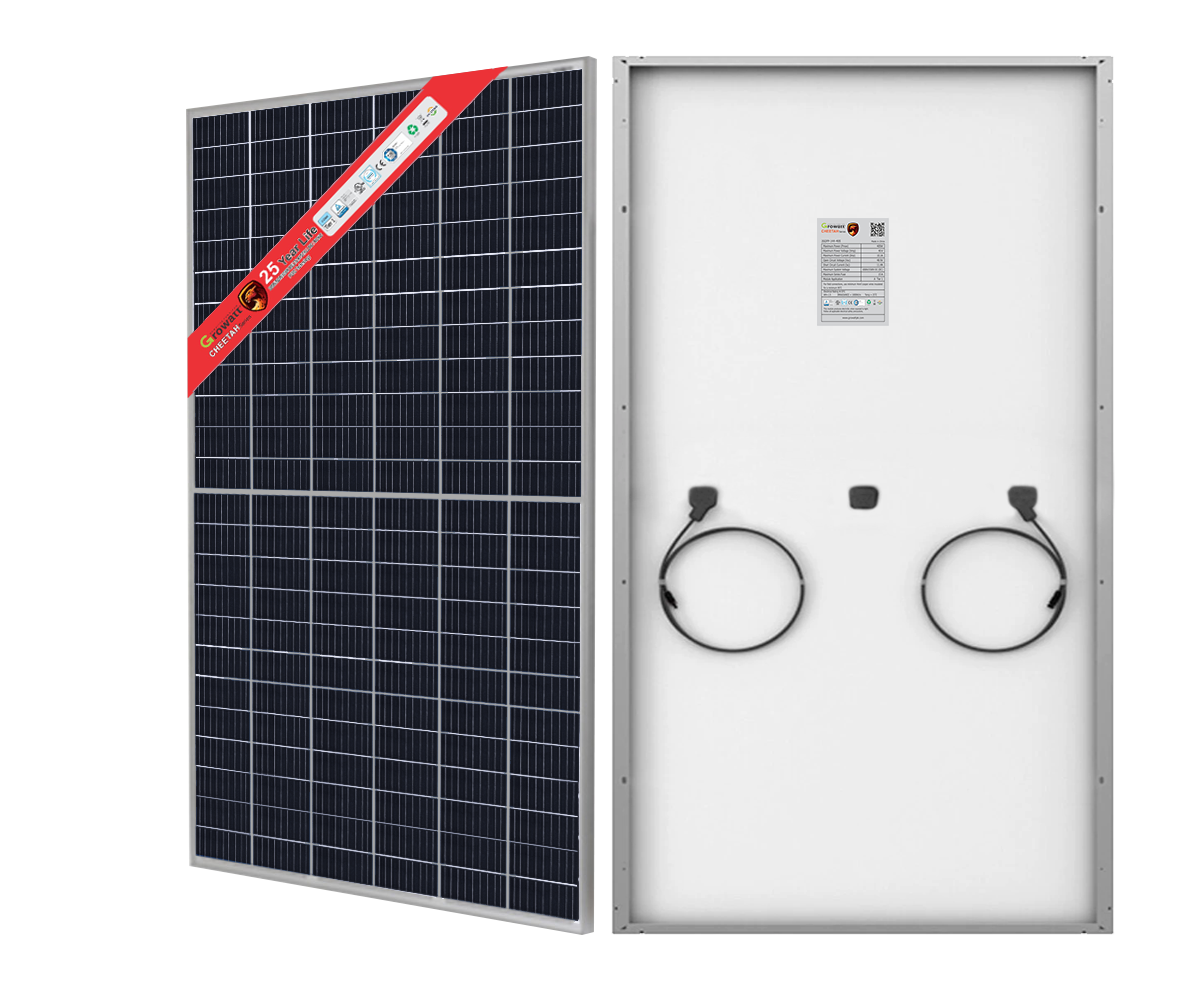

Cheetah Series (JSGFP-144-405) GrowattPK Solar Panel

Cheetah (JSGFP-144-405)

Specifications - Cheetah (JSGFP-144-405)
Maximum Power (Pmax) 405W
Maximum Power Voltage (Vmp) 40V
Maximum Power Current (Imp) 10.1A
Open Circuit Voltage (Voc) 48.9V
Short Circuit Current (Isc) 11.4A
Maximum System Voltage 1000V / 1500V DC (IEC)
Maximum Series Fuse 15A
Module Application A Tier 1
For Field Connections, use minimum 4mm2 Copper Wires insulated for a minimum 90°C
Electrical Rating at STC
AM = 1.5 IRRADIANCE = 1000 W/m Temp = 25°C
This module produce electricity when exposed to light, Follow all applicable electrical safety precautions.
