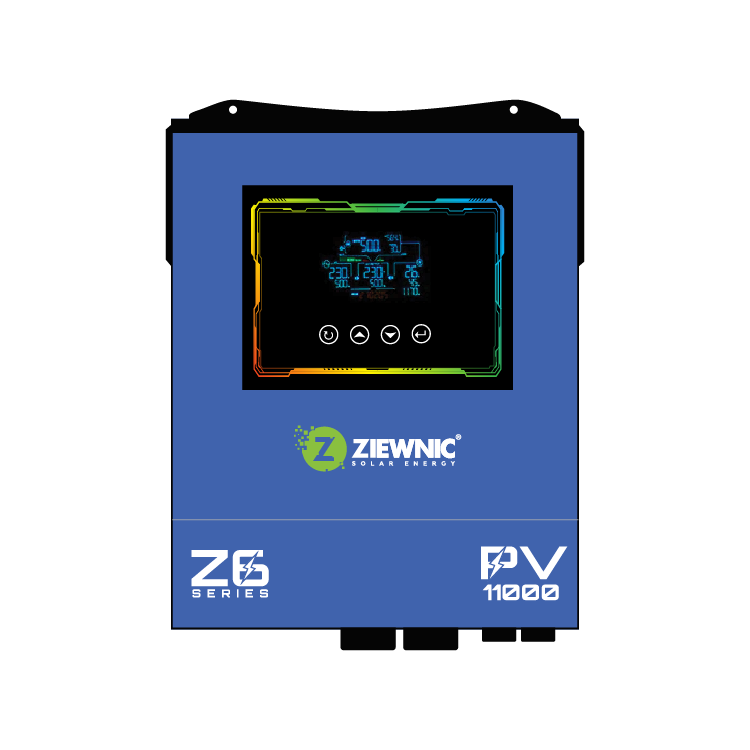

| Specifications - Z6 ON GRID WITH ENERGY STORAGE HYBRID 8.5 (KVA) 6G EUROPEAN - PV 11000 | |||
| Max. PV Input Power | 11000W | ||
| GRID TIE OPERATION | |||
| PV INPUT ( DC ) | |||
| Rated AC Output Power | 8500W | ||
| Nominal DC Voltage/Maximum DC Voltage | 360VDC/450VDC | ||
| Start-up Voltage/Initial Feeding Voltage | 120VDC | ||
| MPPT Voltagve Range | 90-450 VDC | ||
| Np. of MPPT Tracker/Max Input Current | 2/18A (5500W * 2) | ||
| GRID OUTPUT ( AC ) | |||
| Nominal Output Voltage | 220 Vac/230Vac/240Vac, Single Phase | ||
| Output Voltage Range | 184V-256Vac or 195-253V (Selectable) | ||
| Nominal Output Current | 38A | ||
| Power Factor | >09 | ||
| EFFICIENCY | |||
| Max. Conversion Efficiency (DC/AC) | 98% | ||
| OFF-GRID OPERATION | |||
| AC INPUT (AC) | |||
| AC Start-up Voltage/Auto Restart Volt. | 120Vac-1 40Vac/180Vac | ||
| Acceptable Input Voltage Range | 90-280Vac or 170-280Vac | ||
| Max. AC Input Current | 63A | ||
| PV INPUT (DC) Off-Grid | |||
| Max. DC Voltage | 450VDC | ||
| MPPT Voltage Range | 90-450VDC | ||
| No. of MPPT Tracker/Max. Input Current | 2/18A (5500W * 2) | ||
| GRID TIE MODE | |||
| Nominal Output Volt | 220Vac/230Vac/240Vac, Single Phase | ||
| Feed-in Voltage Range | 184V-256Vac | ||
| Max Efficiency DC/AC | >95% | ||
| BATTERY MODE OUTPUT ( AC ) | |||
| Nominal Output Voltage | 220Vac/230Vac/240Vac | ||
| Waveform | PURE SINE WAVE | ||
| Efficiency(DC to AC) | 93% | ||
| HYBRID OPERATION | |||
| PV INPUT (DC) HYBRID | |||
| Nominal DC Volt/Max DC Voltage | 360VDC/450VDC | ||
| Start-up Voltage Initial Feeding Voltage | 120VDC | ||
| MPPT Voltage Range | 90-450VDC | ||
| No. of MPPT Tracker/Max. Input Current | 2/18A (5500W * 2) | ||
| GRID OUTPUT ( AC ) HYBRID | |||
| 220Vac/230Vac/240Vac, Single Phase | |||
| Output Voltage Range | 184V-265Vac or 195-253V (Selectable) | ||
| Nominal Output Current | 38A | ||
| AC INPUT (AC) HYBRID | |||
| AC Start-up Volateg/Auto Restart Volt. | 120Vac-1 40Vac/180Vac | ||
| Acceptable Input Voltage Range | 90-280Vac or 170-280Vac | ||
| Max. AC Input Current | 63A | ||
| BATTERY MODE OUTPUT ( AC ) HYBRID | |||
| Nominal Output Volt | 220Vac/230Vac/240Vac | ||
| Waveform | Pure Sine Wove | ||
| Efficiency (DC to AC) | 93% | ||
| BATTERY & CHARGER | |||
| Battery Type Supported | 48 VDC | ||
| Nominal Battery Voltage | 120A | ||
| Max Solar Charge Current | 120A | ||
| Max AC Charge Current | 120A | ||
| Max Total Charge Current | 120A | ||
| GENERAL | |||
| PHYSICAL | |||
| Dimension,D x W X H(mm) | 530*415*149 | ||
| Product Net Weight (kgs) | 19.4 | ||
| Product Gross Weight (kgs) | 21.6 | ||
| Packing Dimension D x W x H (mm) | 690 x 550 x 242mm. 1PC/CTN | ||
| Parallel Function Optional | Yes Optional, Max 6Pcs | ||
| Communication Interface | RS232. USB. Wi-F. Touch LCD | ||
| ENVIRONMENT | |||
| Humidity | 5% to 95% Relative Humidity (Non-Condensing) | ||
