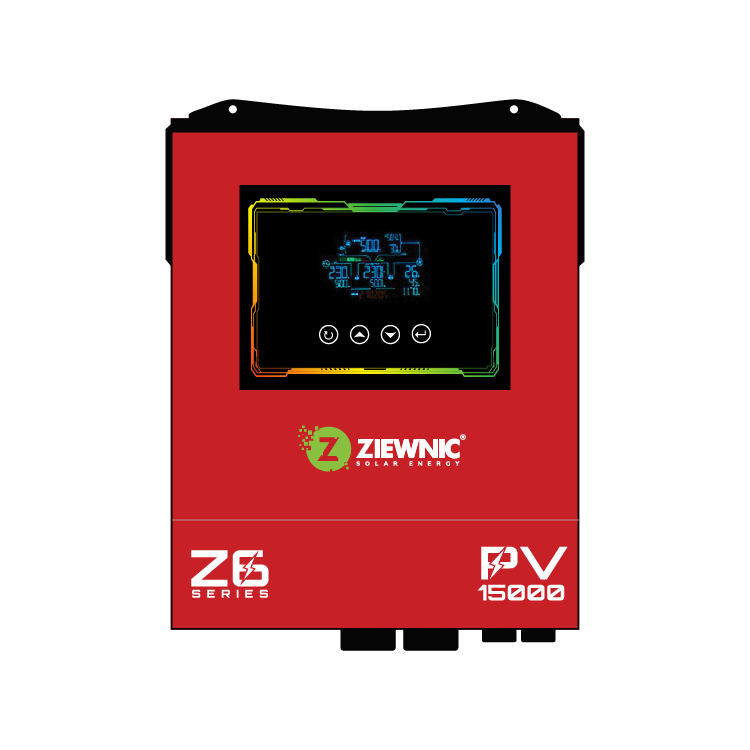

Z6 ON GRID WITH ENERGY STORAGE HYBRID 12(KW) 6G EUROPEAN - PV15000 - GrowattPK

Z6 ON GRID WITH ENERGY STORAGE HYBRID 12(KW) 6G EUROPEAN - PV15000 GrowattPK inverter

Z6 ON GRID WITH ENERGY STORAGE HYBRID 12(KW) 6G EUROPEAN - PV15000

  • Introducing 1st time in Pakistan, single phase Inverters support three phase when installed in parallel
  • 100% Pure Sine wave Inverter
  • Touch LCD Button module with various communications
  • PV and utility power the load at the same time can be set
  • Energy generated record, load record history information and fault record
  • Parallel operation up to 6 units
  • Built-in two 15000W MPPTS, with wide input range: 90-450VDC
  • Reserved communication port for BMS (RS485, CAN-BUS or RS323)
  • Upgraded 6th generation smart and intelligent solar inverter
  • Zero transfer time
  • Battery Equalization/Compatible with Li-ion, LifePo4 and etc)
  • Conformal Coating to Prevent from Dust and Humidity
  • Output power factor PF-1.0
  • Dual outputs, for smart load management
  • PV input current increase to 27*2A
  • Compatibale to utility main or generator units
  • Replaceable fan design for ease of maintenance
  • Support Peak-Valley Charge
  • Efficiently Work with & with out battery
  • Optional Wi-Fi interface with Android & IOS
  • Supports USB On-the-Go Function
  • Battery independent design
  • Selectable high power charging current
  • Overload and Short Circuit Protection
  • Status indication with RGB lights
  • Built in zero export
  • 100% reverse grid feeding
  • Built-in local Wi-Fi (10 Meter Range)
  • European Design and Engineered in Taiwan
Specifications - Z6 ON GRID WITH ENERGY STORAGE HYBRID 12(KW) 6G EUROPEAN - PV15000
Max. PV Input Power 15000W
Rated AC Output Power 12000W
GRID TIE OPERATION/strong>
INPUT
Voltage 230 VDC
Selectable Voltage Range 170-280VAC (For Personal Computers) 90-280VAC (For Home Appliances)
Frequency Range 50Hz/60Hz (Auto Sensing)
OUTPUT
AC Voltage Regulation (Batt.Mode) 230VAC-1-5%
Surge Power 22000VA
Efficiency (Peak) 93%
Transfer Time 10mx (For personal Computers), 20ms (For Home Appliances)
Wave form Pure Sine Wave
DC Voltage N/A
BATTERY
Battery Voltage 48VDC
Floating Charge Voltage 54VDC
Overcharge Protection 63VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type MPPT
Max PV Array Power 15000W (7500W x 2)
MPP Range @operating Voltage 90 — 450VDC
Maximum PV Array Open Circuit Voltage 500VDC
Mcadmum IN Input Current 27A x 2 (Max 40A)
Maximum Solar Charge Current 150A
Max AC Charge Current 150A
Max Charge Current 150A
PHYSICAL
Dimension,D x W X H(mm) 147.4 x 432.5 x 553.6
Net Weight(kgs) 18.4
Communication Interface USB / RS232 / RS485 / Wi-Fl / Dry-Contact
OPRERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity (Non-Condensing)
Operating Temperature -10 to 50 Degree Centigrade
Storage Temperature -15 to 60 Degree Centigrade
STANDARD
Compliance Safety CE
