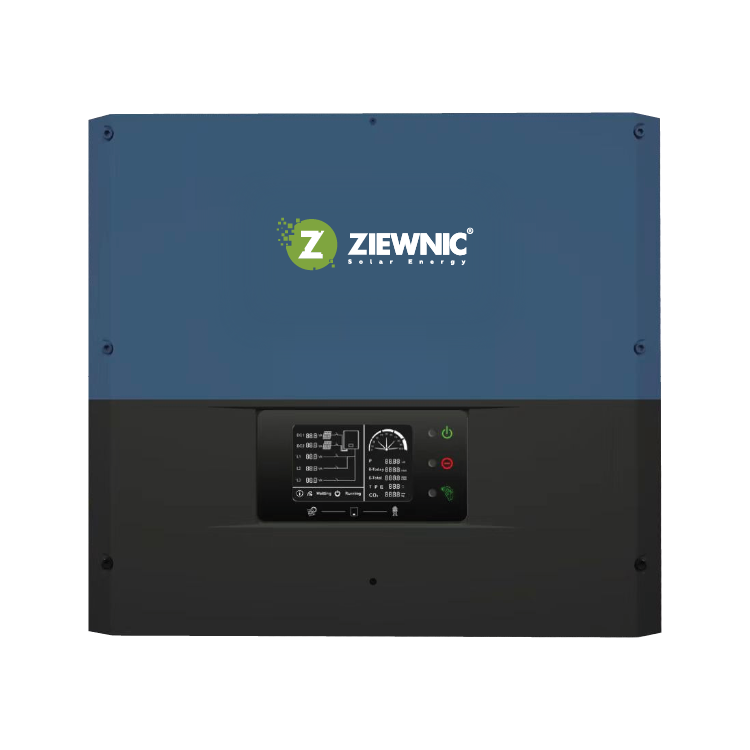

| Specifications - TriPower X15KTL 3 Phase Inverter | |||
| Max DC Power (W) | |||
| Max. DC Voltage (VDC) | 22500 | ||
| Max DC Voltage VDC) | 1000 | ||
| Min Working Voltage (VDC) | 250 | ||
| MPPT Voltage range (VDC) | 250~850 | ||
| Max Input Current / Per String (A) | 26 / 18A | ||
| Numbers of MPPT Tracker | 2 | ||
| String per MP Tracker | 3 | ||
| (AC SIDE) OUTPUT PARAMETERs | |||
| AC Nominal Power (W) | 15000 | ||
| Max. AC Apparent Power (VA) | 17000 | ||
| Max. Output Current (A) | 23 | ||
| Nominal AC Output | 50/60 Hz; 400Vac | ||
| AC Output Range | 45/55 Hz; 280 ~ 490Vac (Adj) | ||
| Power Factor | 0.8 Leading... 0.8 Lagging | ||
| Harmonics | < 1.5% | ||
| Grid Type | 3 W / N / PE | ||
| EFFICIENCY | |||
| Max. Efficiency | 98.5% | ||
| Euro. Efficiency | 98.0% | ||
| MPPT Efficiency | 99.9% | ||
| SAFETY & PROTECTION | |||
| DC Reverse Polarity Protection | Yes | ||
| DC Breaker | Yes | ||
| DC /AC SPD | Yes | ||
| Leakage Current Protection | Yes | ||
| Insulation Impedance Detection | Yes | ||
| Residual Current Protection | Yes | ||
| GENERAL SPECIFICATIONS | |||
| Operating Temperature Range | -25 ~ +60 | ||
| Degree of Protection | IP65 | ||
| Cooling Concept | Natural Convection | ||
| Topology | Transformerless | ||
| Display | LCD | ||
| Humidity | 0-95% Non Condensation | ||
| Communication | Standard Wi-Fi / Rs485 (Optional) | ||
| Warranty | 5 Year (Terms & Condition Apply) | ||
| Certificates and Approvals | CE, EN50549, CQC, VDE-ARON4105, VDE0126-1-1, AS4777, IEC62116, IEC61000, IEC62109 | ||
