Suntree ON Grid 30K-TL+ 3 Phase String Inverter - GrowattPK

Suntree ON Grid 30K-TL+ 3 Phase String Inverter GrowattPK inverter

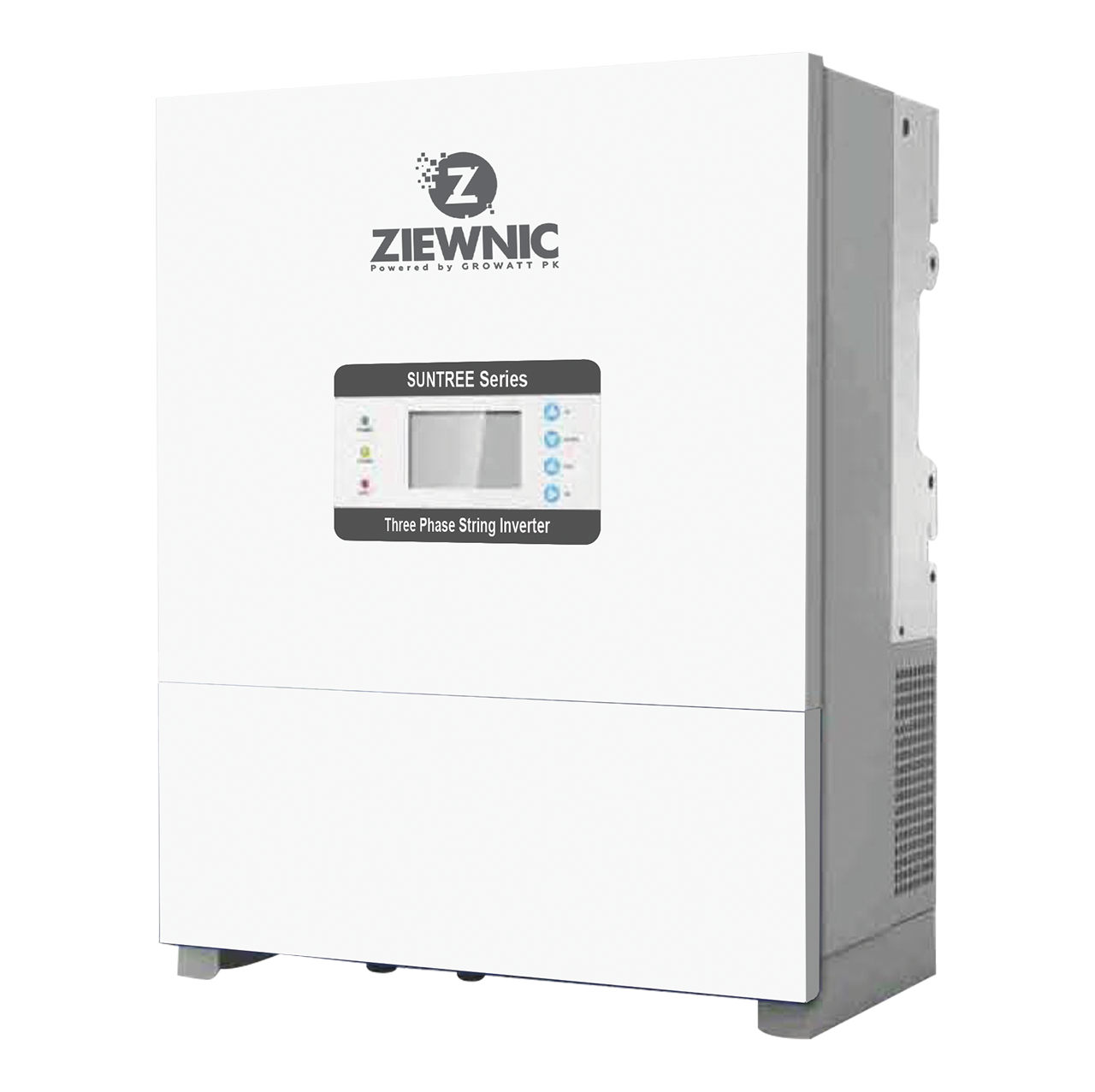

Suntree ON Grid 30K-TL+ 3 Phase String Inverter

  • Support double glass PV module
  • IP65 protection degree, natural cooling
  • Wide input voltage 250~1100VDC
  • Multiple MPPT design, Maximum efficiency of 98.1 to 99.9%
  • Big LCD screen, multi-function buttons, easy operation and maintenance
  • Diverse communication connection RS232, RS485, Wi-Fi and GPRS
  • String level monitoring, efficient and quick fault diagnosis
Specifications - Suntree ON Grid 30K-TL+ 3 Phase String Inverter
INPUT (DC SIDE)
Max. DC Input Power (W) 36000
Max. DC Voltage (VDC) 1000
Start Voltage (VDC) 200
MPPT Voltage Range (VDC) 200 ~ 960
Numbers of Inputs 6
Numbers of MPPT 3
Max. Input current (A) 3 * 25
OUTPUT (AC SIDE)
Rated Output Power (W) 30000
Max. Output Power (VA) 36000
Rated Output Current (A) 43.3
Max. Output Current (A) 47.6
Rated Output Voltage (VAC) 400
Output Voltage Range (VAC)* 323 - 480
Grid Frequency Range (HZ)* 50 / 60 + 5
Power Factor (cos) 0.8 (Leading)
THDI <3 %
EFFICIENCY
Max. Efficiency 98.2 %
Euro. Efficiency 97.6 %
MPPT Efficiency 99.9 %
PROTECTION
Built-in Protections Dc Reverse Polarity, Short Circuit, Output Over Current, Output Over Voltage,
Insulation Resistance Monitoring Residual Current Detection, Surge Protection,
Anti-island Protection, Over Temperature Protection
Lighting Protection DC Type || AC Type
GENERAL DATE
Operating Temperature (°C) -25 ~ +60
Noise [dB (A)] <30
Night Power Consumption (W) <2
Electrical Isolation Transformerless
Cooling Concept Natural Cooling
Degree of Protection IP65
Communication : RS232/ Yes / Opt
RS485 / Wi-Fi / GPRS Opt / Opt
Dimensions (W * D * H mm) 476 * 258 * 830
Weight (kg) 42
*AC grid voltage range and frequency depends on local standards.
