Revo VM-III Plus (5500-48) - GrowattPK

revo vmIII 5500-48 GrowattPK inverter

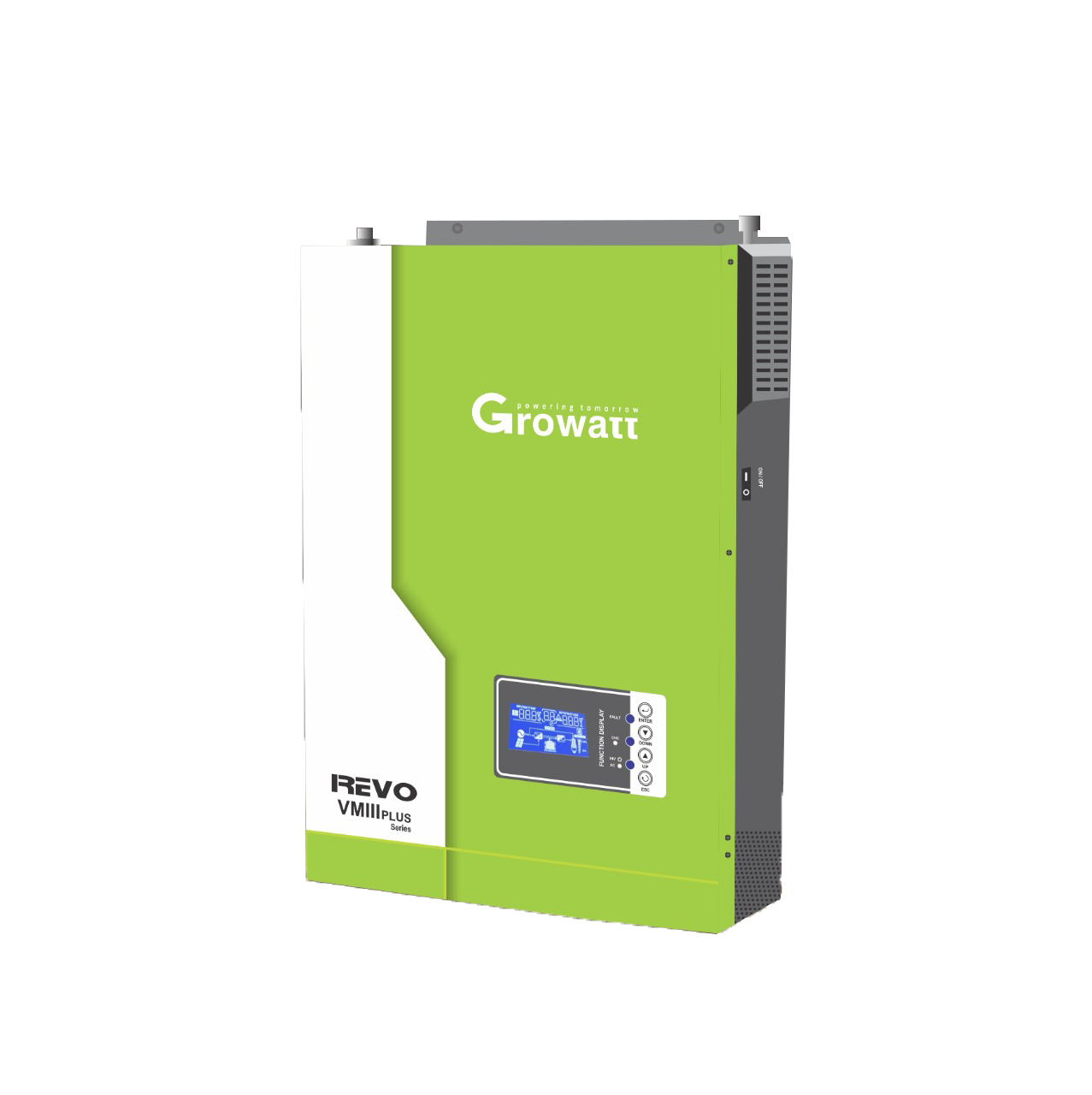

Revo VM-III Plus (5500-48)

  • 100% Pure sine wave inverter
  • Inverter with battery equalization
  • Upgrated generaton smart and intelligent solar inverter
  • First time in PAKISTAN (120AH MPPT) based solar charge inverter
  • Output power factor 1
  • Adaptable to main voltage / Generator power
  • Compatible with SNMP box Wi-Fi box
  • New smart LCD display
  • Conformal coating to prevent from dust and humidity
  • Configurable AC/Solar input priority via LCD setting
  • Overload and short circuit protection
  • Work with battery and without battery
  • Wi-Fi Mobile monitoring device (Optional)
Specifications - REVO VM-III PLUS (5500-48)
Rated Power 5500VA | 5500W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) : 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 10000VA
Efficiency (Peak) 90% - 93%
Transfer Time 1O ms (For Personal Computers) : 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY
Battery Voltage 48 VDC
Floating Charge Voltage 54 VDC
Overcharge Protection 63 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger type TRUE MPPT
Maximum PV Array open circuit voltage 500 VDC
Maximum PV Array Power 6500 W
MPP Range @ Operating Voltage 120 ~ 450 VDC
Maximum Solar Charge Current 100 A
Maximum AC Charge Current 60 A
Maximum Charge Current 160 A
ENVIRONMENT
Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature -10 °C to 50 °C
Storage Temperature -15 °C to 60 °C
Design & Engineering in Taiwan
