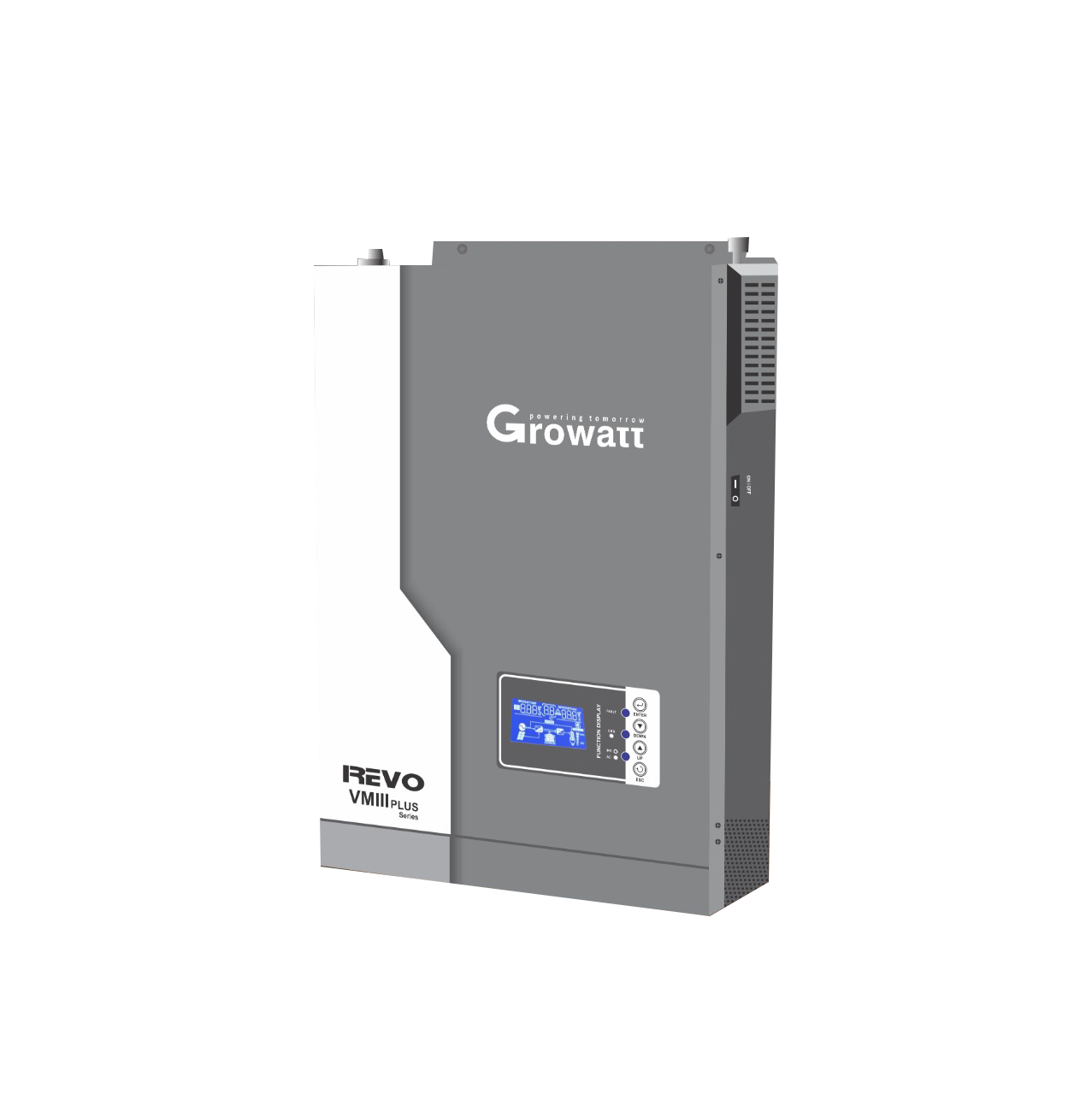

| Specifications - REVO VM-III PLUS (3500-24) | |||
| Rated Power | 3500VA | 3500W | ||
| INPUT | |||
| Voltage | 230 VAC | ||
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) : 90-280 VAC (For Home Appliances) | ||
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | ||
| OUTPUT | |||
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | ||
| Surge Power | 6000VA | ||
| Efficiency (Peak) | 90% - 93% | ||
| Transfer Time | 1O ms (For Personal Computers) : 20 ms (For Home Appliances) | ||
| Waveform | Pure sine wave | ||
| BATTERY | |||
| Battery Voltage | 24 VDC | ||
| Floating Charge Voltage | 27 VDC | ||
| Overcharge Protection | 33 VDC | ||
| SOLAR CHARGER & AC CHARGER | |||
| Solar Charger type | TRUE MPPT | ||
| Maximum PV Array open circuit voltage | 500 VDC | ||
| Maximum PV Array Power | 5000 W | ||
| MPP Range @ Operating Voltage | 120 ~ 450 VDC | ||
| Maximum Solar Charge Current | 120 A | ||
| Maximum AC Charge Current | 60 A | ||
| Maximum Charge Current | 180 A | ||
| ENVIRONMENT | |||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | ||
| Operating Temperature | -10 °C to 50 °C | ||
| Storage Temperature | -15 °C to 60 °C | ||
| Design & Engineering in Taiwan | |||
