Revo V (1200-12) - GrowattPK

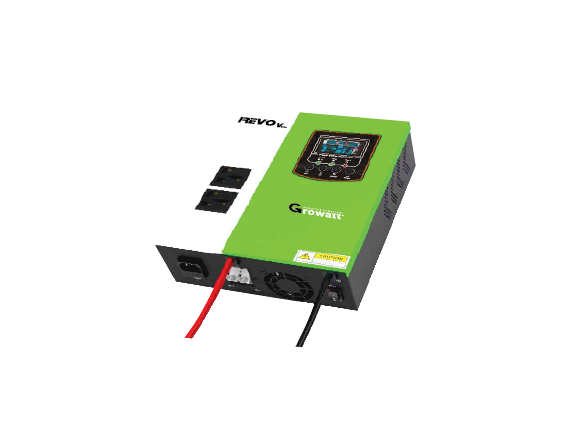

Revo V 1200-12 GrowattPK inverter

Revo V (1200-12)

  • Simulated sine wave 90%
  • Built in solar charge controller 60AMP
  • Battery equlization
  • Hybrid settings functional with 3 buttons
  • Boosted buck charging with (AVR)
  • Voltage operate 95 volts 285 volts
  • Reverse polarity protection
  • Automatic Line-to-battery switch over
  • Selectable input voltage ranges
  • Rack design and wall-Mounted design for flexable installation
  • Provides overload protection
  • Auto restart while AC recoevry
  • Multi-function LED/LCD indications and buzzer alarms
  • High efficient DC-to-AC conversion minimizing energy loss
  • Intelligent 4-stage charger for efficient charging and preventing overcharge
  • Cost-effective as compare to generator multiple protection : Low battery alarm, Low battery shutdown, Over charge voltage shutdown, Overload alarm, Overload shutdown, Over temprature shutdown, Short circuit shutdown
  • Conformal coating to prevent from dust and humidity
Specifications - REVO V (1200-12)
Rated Power 1200VA | 1000W
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) : 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 2400VA
Efficiency (Peak) 90% - 93%
Transfer Time 1O ms (For Personal Computers) : 20 ms (For Home Appliances)
Waveform Simulated sine wave
Battery Voltage 12 VDC
Floating Charge Voltage 13.5 VDC
Overcharge Protection 16 VDC
Solar Charger type Semi MPPT
Maximum PV Array open circuit voltage 55 VDC
Maximum PV Array Power 1000 W
MPP Range @ Operating Voltage N/A
Maximum Solar Charge Current 60 A
Maximum AC Charge Current 20 A
Maximum Charge Current 80 A
Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature -10 °C to 50 °C
Storage Temperature -15 °C to 60 °C
Design & Engineering in Taiwan
