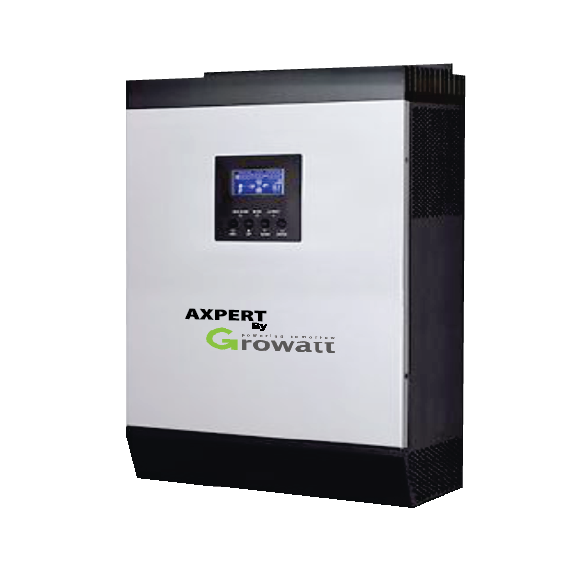

Axpert VPIII (5000-48)

  • Pure sine wave solar inverter
  • Output power factor 1
  • Selectable highpower charging current
  • Wide DC input range
  • Built in (AVR) 90V to 285
  • Selectable input voltage range for home appliances and personal computer
  • Configurable AC/Solar input priority via LCD setting
  • Compatible to AC mains or generator power
  • Auto restart while AC is recovering
  • Overload and short circuit protection
  • Smart battery charger design for optimized battery performance
  • Cold start function
  • Optional anti-dusk kit
  • parllal optional 5KVA only
  • Built in battery system
Specifications - Axpert VPIII (5000-48)
Rated Power 5000VA / 5000W
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) : 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 10000VA
Efficiency (Peak) 90% - 93%
Transfer Time 1O ms (For Personal Computers) : 20 ms (For Home Appliances)
Waveform Pure sine wave
Battery Voltage 48 VDC
Floating Charge Voltage 54 VDC
Overcharge Protection 63 VDC
Solar Charger type PWM
Maximum PV Array open circuit voltage 105 VDC
Maximum PV Array Power 3000 W
MPP Range @ Operating Voltage N/A
Maximum Solar Charge Current 60 A
Maximum AC Charge current 60 A
Maximum Charge Current 120 A
Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature -10 °C to 50 °C
Storage Temperature -15 °C to 60 °C
Design & Engineering in Taiwan
