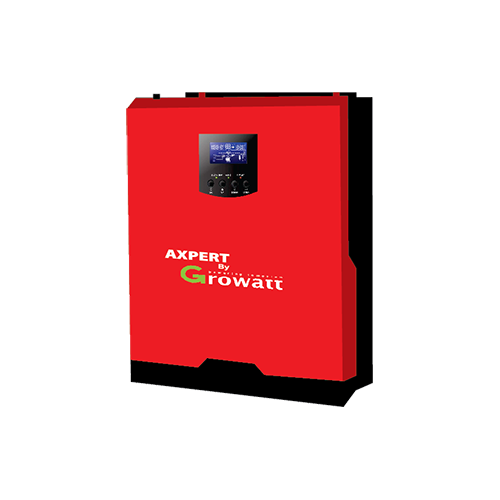

Axpert VMIII Advance (5500-48) - GrowattPK

Axpert VMIII Advance (5500-48) GrowattPK inverter

Axpert VMIII Advance (5500-48)

  • Pure sine wave inverter
  • Inverter with battery equalization function ot optimized battery performance and extend lifecycle
  • 3rd Generation smart and intelligent solar inverter
  • MPPT solar charge controller 80A
  • Output power factor 1
  • Compatible with generator
  • Compatible with the SNMP box
  • New smart LCD display
  • Compatible to mains voltage 90V to 285V
  • Inverter running without battery / high PV input voltage range
  • Built-in anti-dusk kit for harsh environment
Specifications - Axpert VMIII Advance (5500-48)
Rated Power 5500VA / 5500W
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) : 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 10000VA
Efficiency (Peak) 90% ~ 93%
Transfer Time 1O ms (For Personal Computers) : 20 ms (For Home Appliances)
Waveform Pure sine wave
Battery Voltage 48 VDC
Floating Charge Voltage 54 VDC
Overcharge Protection 63 VDC
Solar Charger type MPPT
Maximum PV Array open circuit voltage 500 VDC
Maximum PV Array Power 6000 W
MPP Range @ Operating Voltage 120 ~ 450 VDC
Maximum Solar Charge Current 80 A
Maximum AC Charge current 60 A
Maximum Charge Current 8O A
Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature -10 °C to 50 °C
Storage Temperature -15 °C to 60 °C
Design & Engineering in Taiwan
