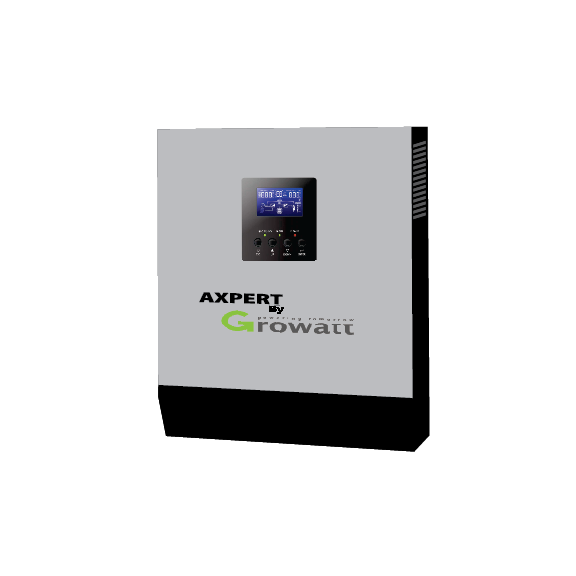

Axpert VM (3000-24) - GrowattPK

axpert vm 3000-24 GrowattPK inverter

Axpert VM (3000-24)

  • Pure sine wave solar inverter
  • Output power factor 1
  • Selectable highpower charging current
  • Wide DC input range
  • Built in (AVR) 90V to 285
  • Selectable input voltage range for home appliances and personal computer
  • Configurable AC/Solar input priority via LCD setting
  • Compatible to AC mains or generator power
  • Auto restart while AC is recovering
  • Overload and short circuit protection
  • Smart battery charger design for optimized battery performance
Specifications - AXPERT VM (3000-24)
Rated Power 3000VA | 3000W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) : 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 6000VA
Efficiency (Peak) 90% - 93%
Transfer Time 1O ms (For Personal Computers) : 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY
Battery Voltage 24 VDC
Floating Charge Voltage 27 VDC
Overcharge Protection 33 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger type MPPT
Maximum PV Array open circuit voltage 8O VDC
Maximum PV Array Power 2000 W
MPP Range @ Operating Voltage 30 - 80 VDC
Maximum Solar Charge Current 50 A
Charge 30 A
Maximum Charge Current 8O A
ENVIRONMENT
Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature -10 °C to 50 °C
Storage Temperature -15 °C to 60 °C
Design & Engineering in Taiwan
