TP15KTL 3 Phase Inverter - GrowattPK

TP15KTL 3 Phase Inverter GrowattPK inverter

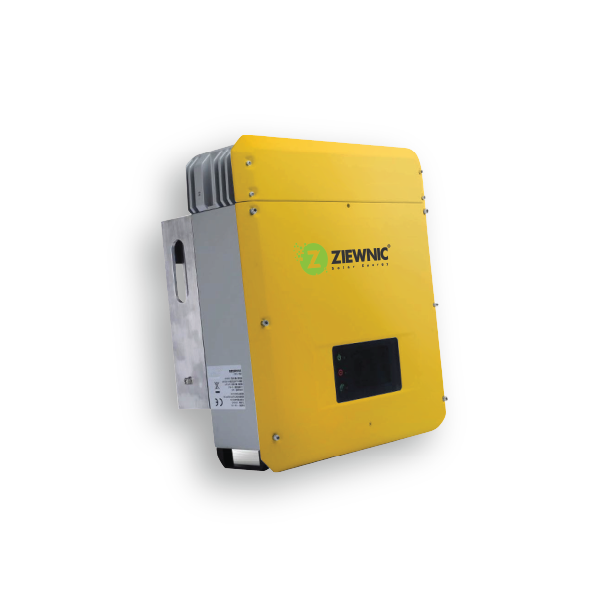

TP15KTL 3 Phase Inverter

  • Quick and easy to install with basic tools
  • Sufficient installation accessories and various optional accessories
  • Quick setup Wi-Fi to App
  • International quality standard
  • IP65 Waterproof for outdoor use
  • Transformer less with three level topology
  • Dual MPPT for efficient tracking
  • Particular design for any where
  • Smart string monitoring
Specifications - TP15KTL 3 Phase Inverter
Max DC Power (W)
Max. DC Voltage (VDC) 22500
Min. Working Voltage (VDC) 1000
MPPT Voltage Range (VDC) 250
Max. Input Current / Per String (A) 250 - 850
Numbers of MPPT Tracker 26 / 18
String per MPPT Tracker 2
OUTPUT (AC SIDE)
AC Nominal Power (W) 15000
Max. AC Apparent Power (VA) 17000
Max. Output Current (A) 23
Nominal AC Output 50 / 60 Hz; 400VAC
AC Output Range 45 / 55 Hz; 280~490VAC (Adj)
Power Factor 0.8 Leading... 0.8 Lagging
Harmonics <1.5%
Grid Type 3 W / N / PE
EFFICIENCY
Max. Efficiency 98.5 %
Euro. Efficiency 98 %
MPPT Efficiency 99.9 %
SAFETY & PROTECTION
DC Reverse Polarity Protection Yes
DC Breaker Yes
DC /AC SPD Yes
Leakage Current Protection Yes
Insulation Impedance Detection Yes
Residual Current Protection Yes
GENERAL
Operating Temperature Range -25 ~ +60
Degree of Protection IP65
Cooling Concept Natural Convection
Topology Transformerless
Display LCD
Humidity 0-95% Non Condensation
Communication Standard Wi-Fi / Rs485 (Optional)
Warranty 5 Year (Terms & Condition Apply)
